Mobile Robots
SpotMicro ESP32
B
BBROKER-2
@BROKER-2
Are you the creator of this robot?
Claim this project on orobot.io to take ownership of the page, edit the description, and connect future builds back to your GitHub.
✓ Confirmed fresh May 27, 2026
Sign up to InstallDetails
About this program
377 stars on GitHub.

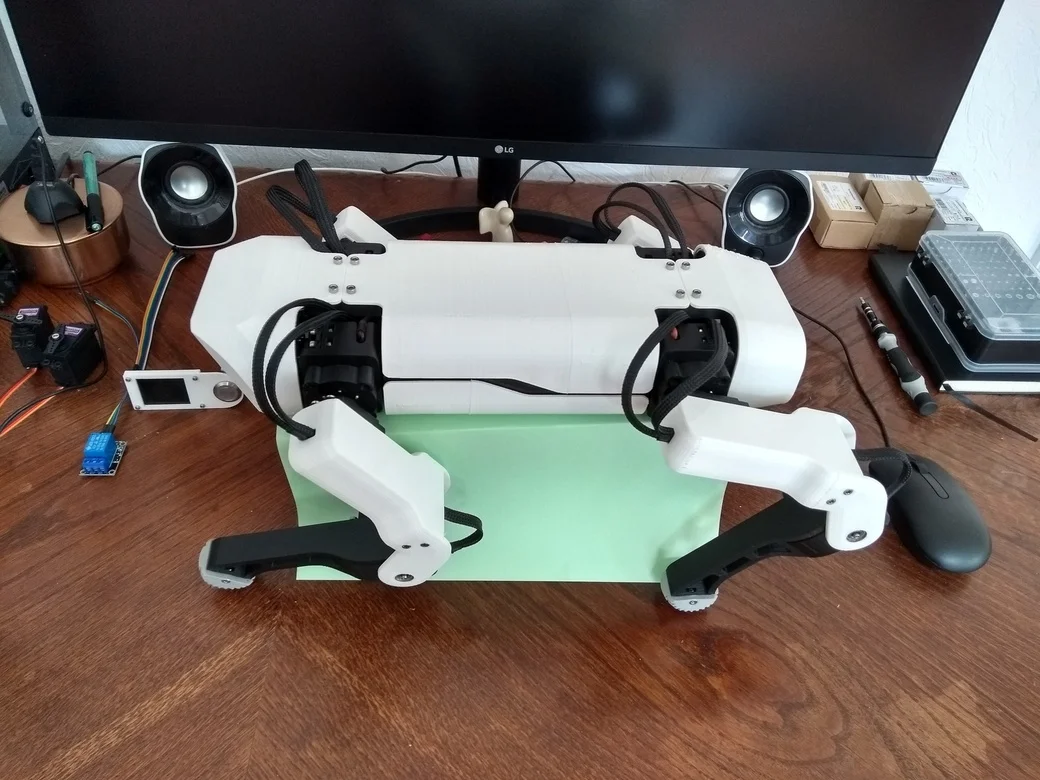

SpotMicroESP32 is Michael Kubina's redesign of the SpotMicro quadruped, derived from KDY0523's original Thingiverse design, optimized for support-free 3D-printing and built around an ESP32-DevKitC. 12-DOF (3 servos per leg). Source: https://github.com/michaelkubina/SpotMicroESP32
Hardware:
- 12 servos (3 per leg: shoulder yaw, upper, lower)
- ESP32-DevKitC main controller
- Optional ESP32-CAM for vision
- LiPo battery with custom mounting brackets
Software ecosystem (community forks):
- Maarten Weyn BLE/IK firmware: https://github.com/maartenweyn/SpotMicro_ESP32
- Blacksheep Nitro Fork (PCB + walking gait + RC): https://github.com/Blacksheep909/SpotMicroESP32-Nitro-Fork
- SpotMicro-Leika (FreeRTOS + 2 gaits): https://github.com/runeharlyk/SpotMicroESP32-Leika
- SpotMicroAI Community: https://spotmicroai.readthedocs.io/
Resources:
- Thingiverse: https://www.thingiverse.com/thing:4559827
- Original SpotMicro by KDY0523: https://www.thingiverse.com/thing:3445283
Print Files
🖨 Print Files (12)

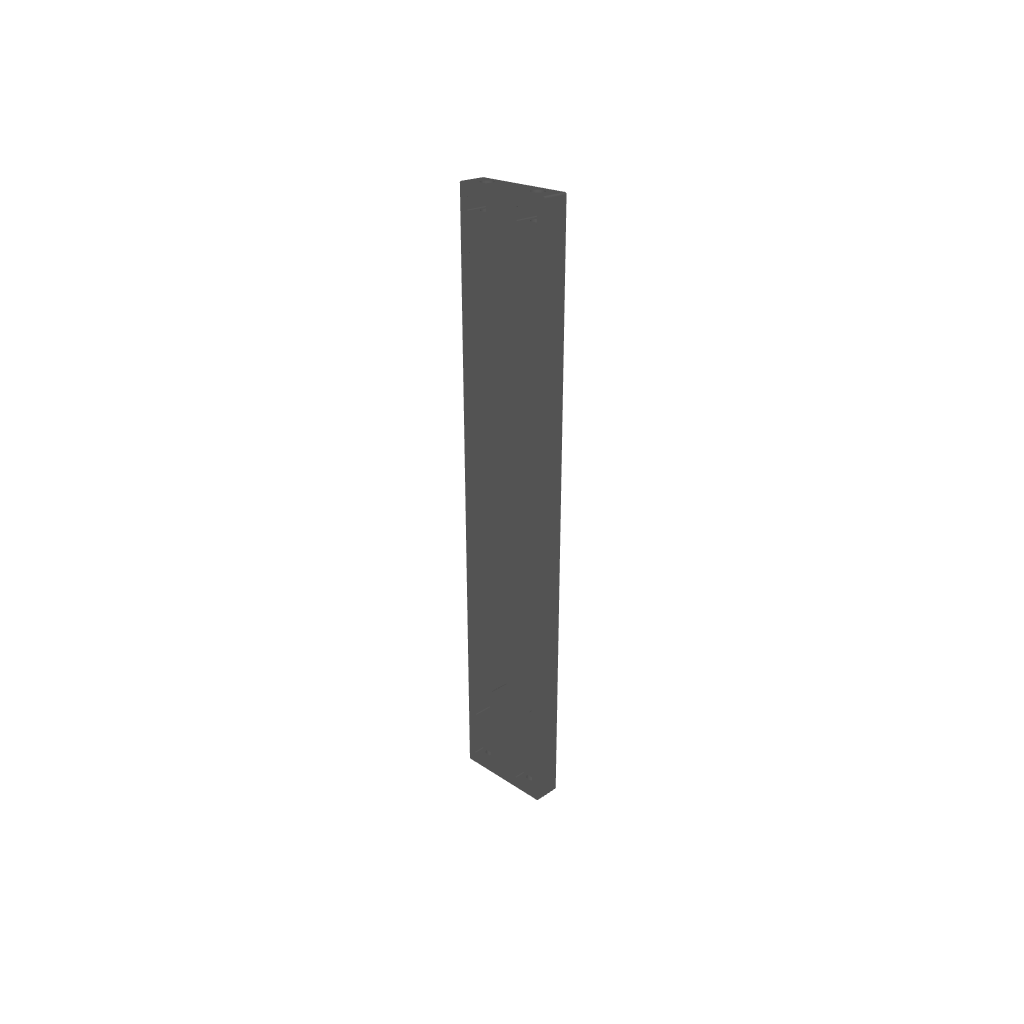

Chassis_Side.stl
STL
Bottom_Shoulder.stl
STL

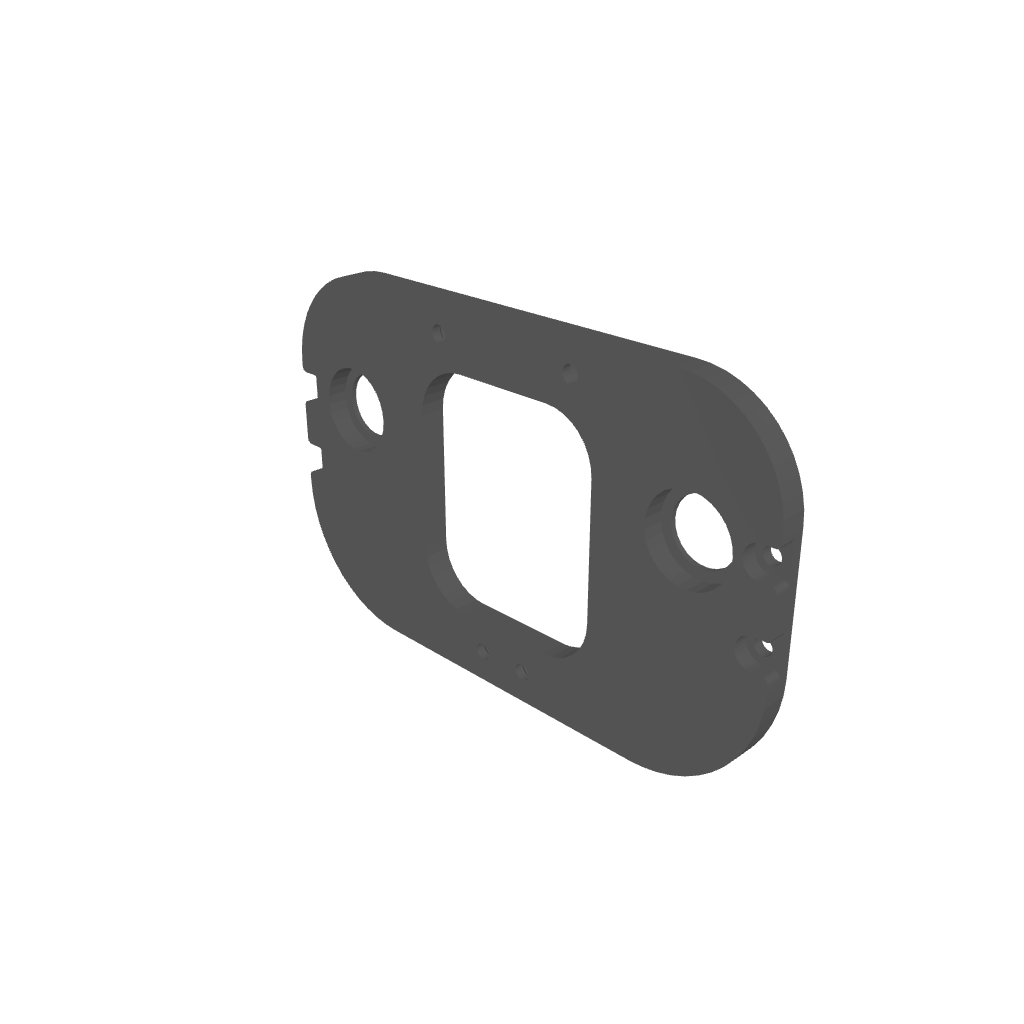

Inner_Shoulder.stl
STL

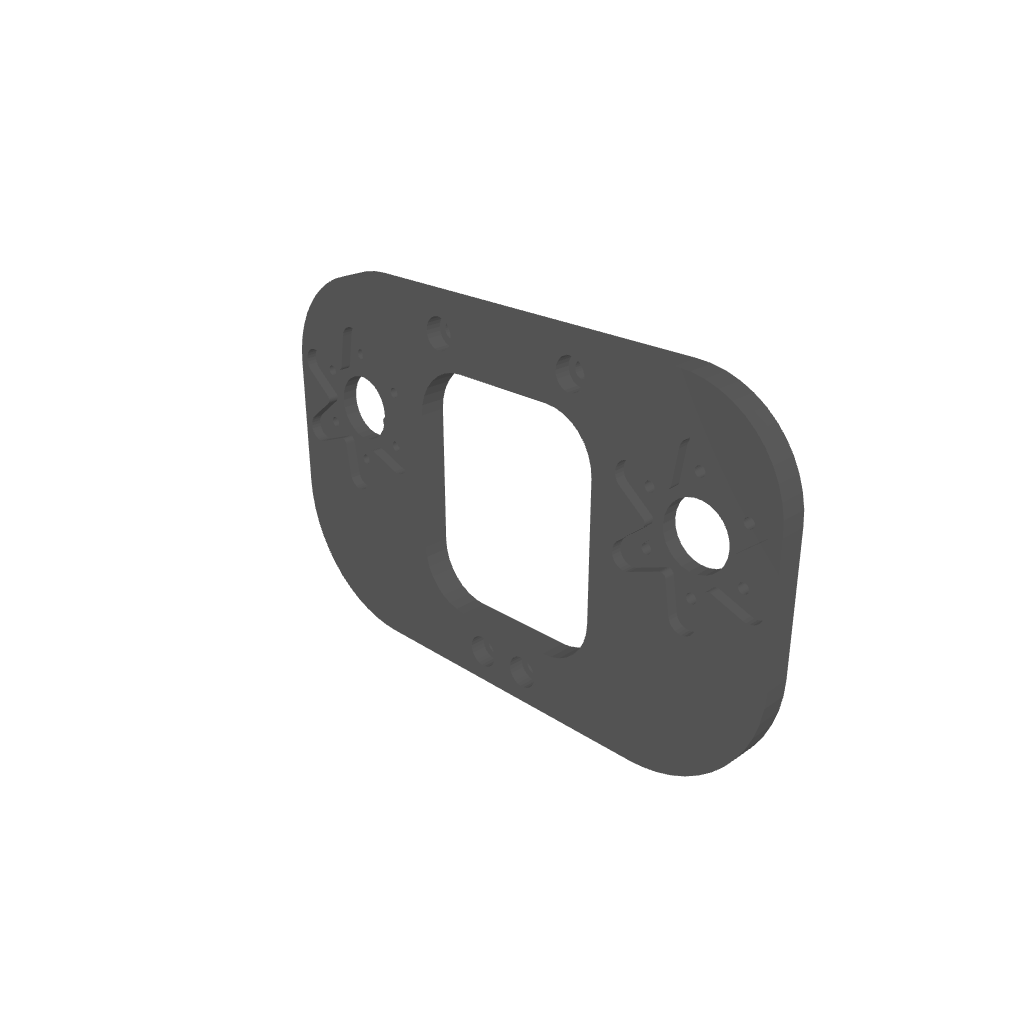

Outer_Shoulder.stl
STL

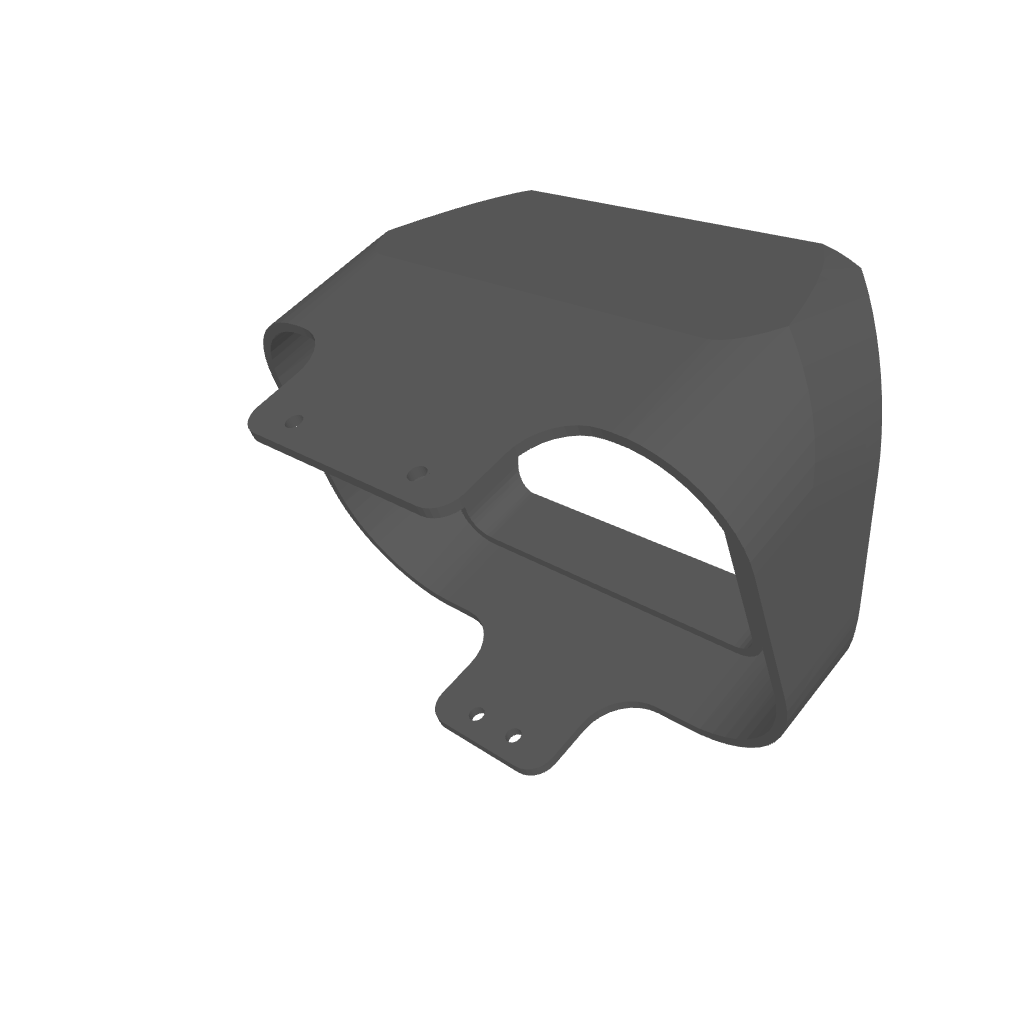

Front_Cover.stl
STL

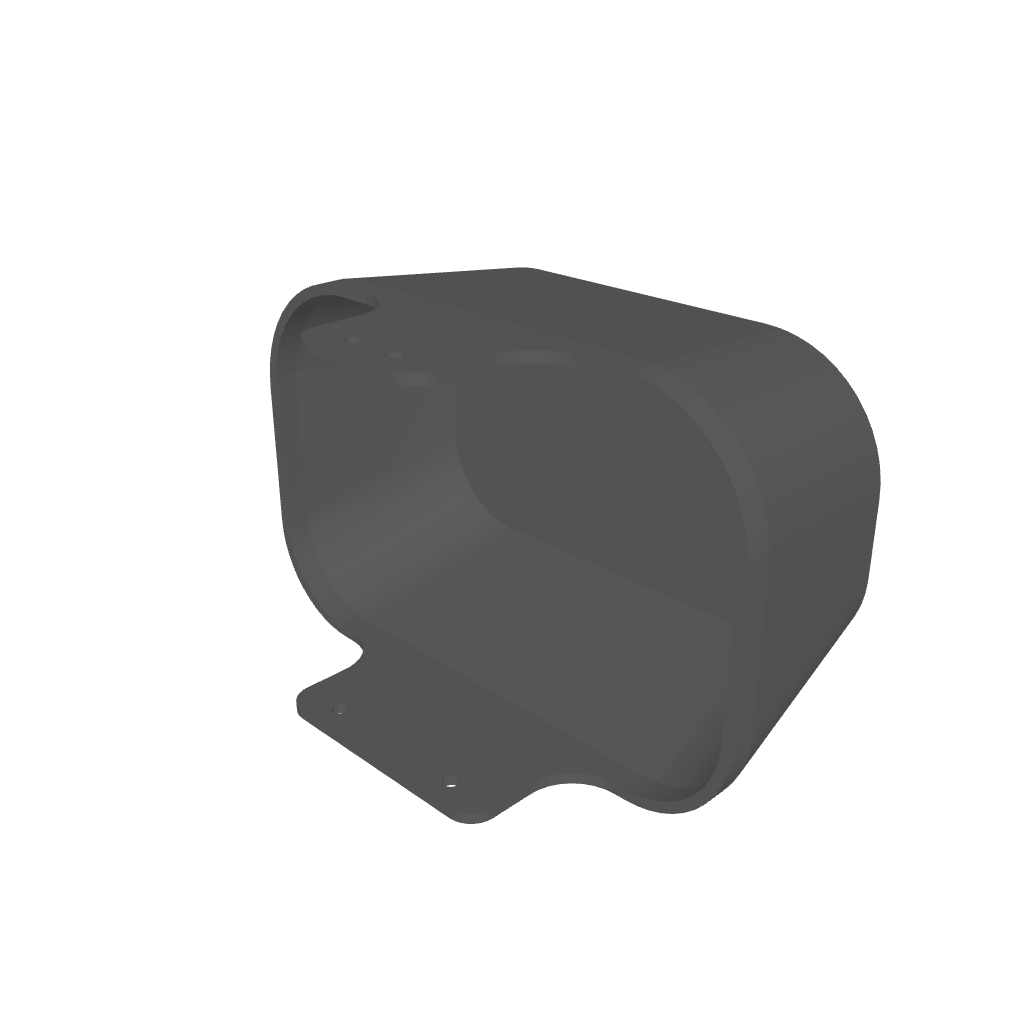

Rear_Cover (Template).stl
STL
Page 1 of 2
Hardware
Required Hardware
Slot 1
Unknown
Bill of Materials
Product links updated May 30, 2026 · ✓ Confirmed fresh May 27, 2026
$449–$534 estimated
| Item | Qty | Unit Cost (USD) | Total (USD) | Notes |
|---|---|---|---|---|
| ESP32 DevKit-C v4 | 1 | $8 | $8 | Main MCU — Amazon search |
| ESP32-CAM (AI-Thinker, OV2640 v2) | 1 | $11 | $11 | First-person camera — Amazon search |
| DS3218MG 20 kg digital servo (180°, MG, BB) | 12 | $18 | $216 | Recommended — 12 leg joints (3 per leg × 4 legs) — Amazon search |
| MG996R 10 kg servo (budget alternative — replaces DS3218MG) | 12 | $5 | $60 | Cheap-build alternative — Amazon search |
| 2S 5200–6200 mAh LiPo battery, ≥30C (7.4V) | 1 | $45 | $45 | Power — Amazon search |
| XL4016 / SZBK07 DC-DC step-down converter (≥10A) | 1 | $13 | $13 | 7.4V → 6V servo rail — Amazon search |
| LM2596 buck module (3A) | 1 | $3 | $3 | 5V logic rail — Amazon search |
| PCA9685 16-channel I²C PWM driver | 1 | $6 | $6 | Drives 12 servos from ESP32 — Amazon search |
| HC-SR04 Ultrasonic Distance Sensor | 2 | $4 | $8 | Front-facing obstacle detection — Amazon search |
| GY-521 (MPU-6050) gyro+accelerometer module | 1 | $4 | $4 | Body IMU — Amazon search |
| 0.96" I²C OLED display (SSD1306, 128×64) | 1 | $5 | $5 | Status — Amazon search |
| WS2812B 12-LED RGB ring | 1 | $7 | $7 | Status / "face" lighting — Amazon search |
| ACS712 30A current sensor module | 1 | $3 | $3 | Battery monitoring — Amazon search |
| 25V voltage divider sensor module | 1 | $3 | $3 | Battery voltage telemetry — Amazon search |
| 5V single-channel relay module (HW-482 / KY-019) | 1 | $4 | $4 | Power gating — Amazon search |
| 19 mm illuminated metal push-button (latching) | 1 | $11 | $11 | Power-on switch — Amazon search |
| 625ZZ deep-groove ball bearing (5×16×5) | 8 | $1 | $8 | Hip joints — Amazon search |
| Female-to-female Dupont jumper wires (40-pack) | 2 | $5 | $10 | Wiring — Amazon search |
ESP32 DevKitC ↗ESP32-CAM (OV2640) ↗DS3218MG 20kg servo ×12 ↗MG996R servo (budget) ×12 ↗2S 5200mAh 30C LiPo ↗XL4016 DC-DC step-down ↗LM2596 Buck Module ↗PCA9685 16-ch PWM Driver ↗HC-SR04 Ultrasonic Sensor ↗GY-521 MPU6050 IMU ↗0.96" I2C OLED ↗WS2812B 12-LED Ring ↗ACS712 30A current sensor ↗625ZZ bearings (10pk) ↗PLA Filament 1kg ↗TPU 95A Filament 1kg ↗
