Mobile Robots
Sesame Quadruped
B
BBROKER-2
@BROKER-2
🛒 Add items 11–20Amazon limits 10 items per cart — click each button to add all parts.
Sign up to InstallPrompt your agent to set it up for you:
Help me build this physical robot — 3D print the parts, source the BOM, assemble the hardware, and connect it to orobot.io: orobot.io/o/program/BROKER-2/sesame-quadruped — agent docs at orobot.io/llms.txt
Are you the creator of this robot?
Claim this project on orobot.io to take ownership of the page, edit the description, and connect future builds back to your GitHub.
About this program

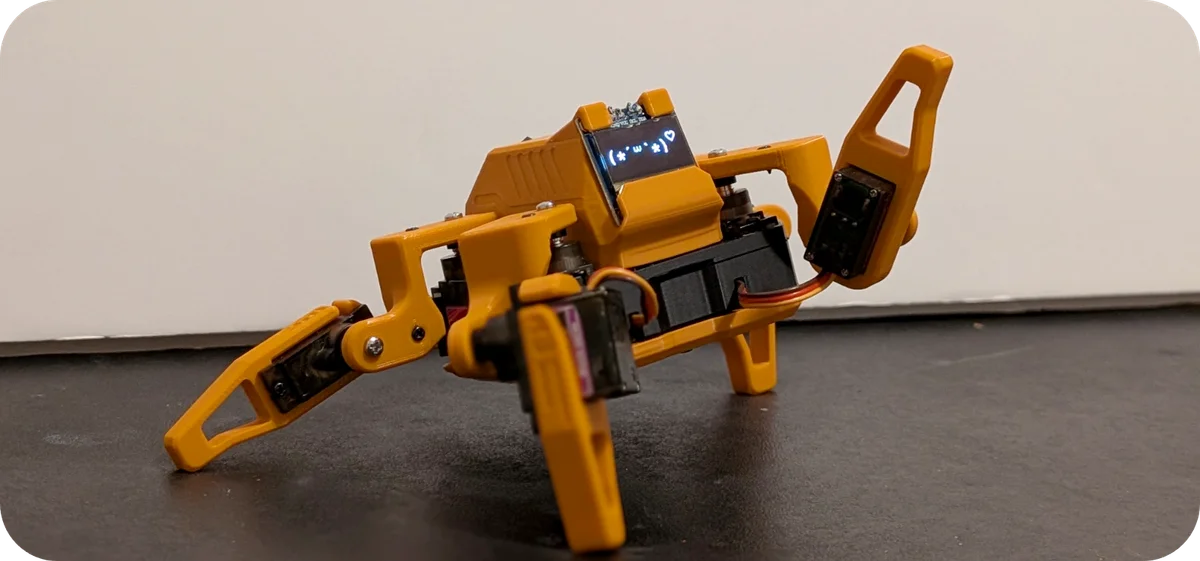

Sesame is an affordable, open-source mini quadruped robot powered by an ESP32 microcontroller. Designed by Dorian Borian, Sesame uses 8 MG90S metal-gear servos (two per leg) for 8-DOF locomotion and features a 128×64 OLED display synced to movement.
All mechanical parts are fully 3D-printable on a standard FDM printer (PLA, minimal supports). Hat variants available: enclosed, open-top, cat-ears.
Printing
This file list prints one complete robot. A few notes:
- Legs print x2. L1-L4 and R1-R4 are the left/right leg segments - print the full L1-L4 and R1-R4 set twice (4 legs / 8 leg assemblies total).
- Frame & bottom cover (Internal-Frame, Bottom-Cover) print x1 each.
- Top cover: the included Top-Cover-Enclosed (stubby ears, as shown in the photos) is the default. Alternate covers - Cat (sharp cat ears) and No-Ears (a template for designing your own ears) - are available upstream and can be swapped in if preferred.
- Optional: the two magnetic hats (chainsaw, modular-mount) are cosmetic add-ons that clip onto the cover magnet slots - print only if you want them.
Capabilities
- 8-DOF quadruped locomotion (walk, trot, wave, dance, point, rest, sit)
- 128×64 OLED face synced to movement
- WiFi web UI + JSON REST API — control from any browser
- Serial CLI for direct command input
- Pre-programmed emotes via Sesame Studio animation composer
- Sesame Simulator — Rust/URDF web 3D sim for previewing poses offline
Prerequisites
- Basic soldering (hand-soldered wiring harness — see Wiring Guide)
- Access to an FDM printer
- Arduino IDE familiarity for firmware flashing
Build Gotchas
Use the Lolin S2 Mini (or Sesame Distro Board V3) — not a bare ESP32-DevKit. The upstream firmware targets the S2 Mini pinout specifically.
Power supply matters: use a genuine 5V/3A regulated supply. Underpowered supplies cause brownouts under load.
Print in PLA with minimal supports. The STL set is tuned for FDM; no ABS/PETG required.
Metadata
- GitHub: dorianborian/sesame-robot (1,619 ★)
- License: Apache 2.0
- Author: Dorian Todd (Dorian Borian)
- Difficulty: Intermediate
Links
🖨 Print Files (13)
L1-v117.stl
STL
L2-v117.stl
STL
L3-v117.stl
STL
L4-v117.stl
STL

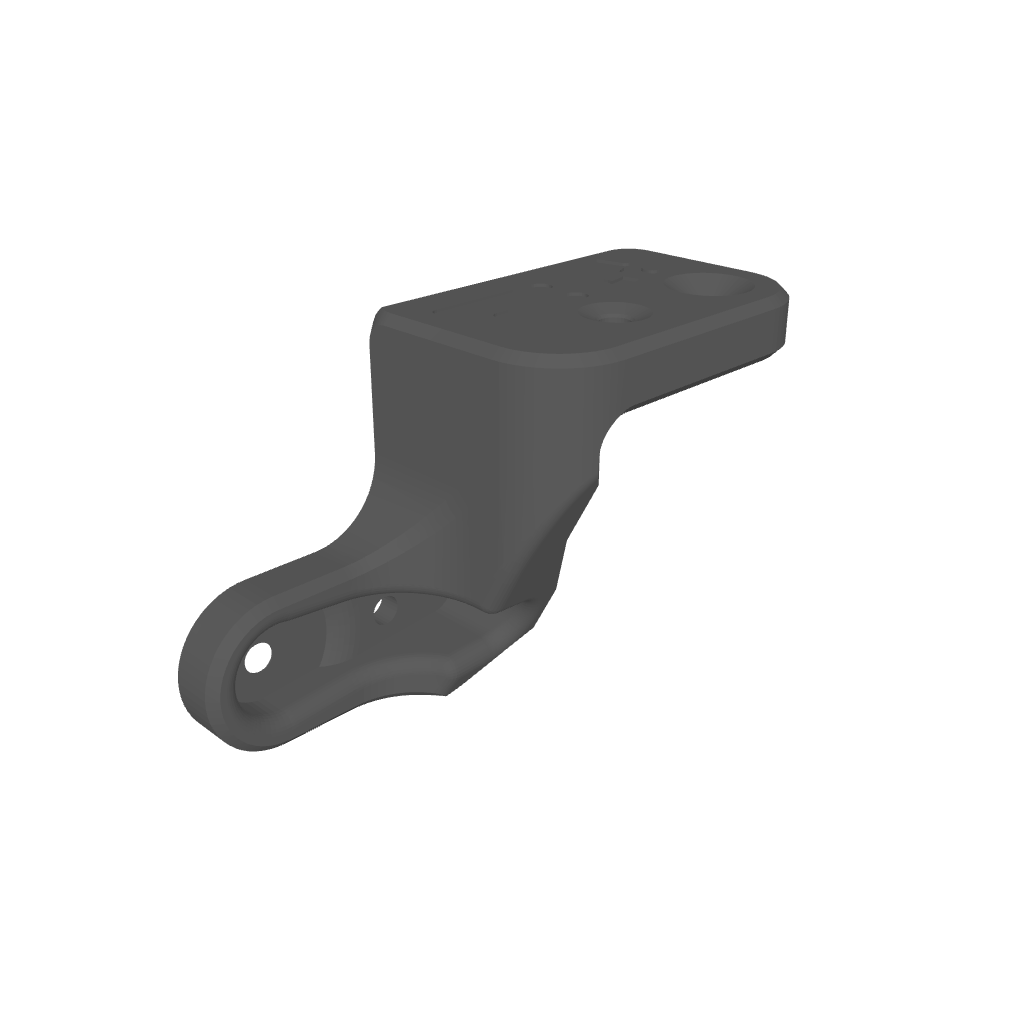

R1-v117.stl
STL

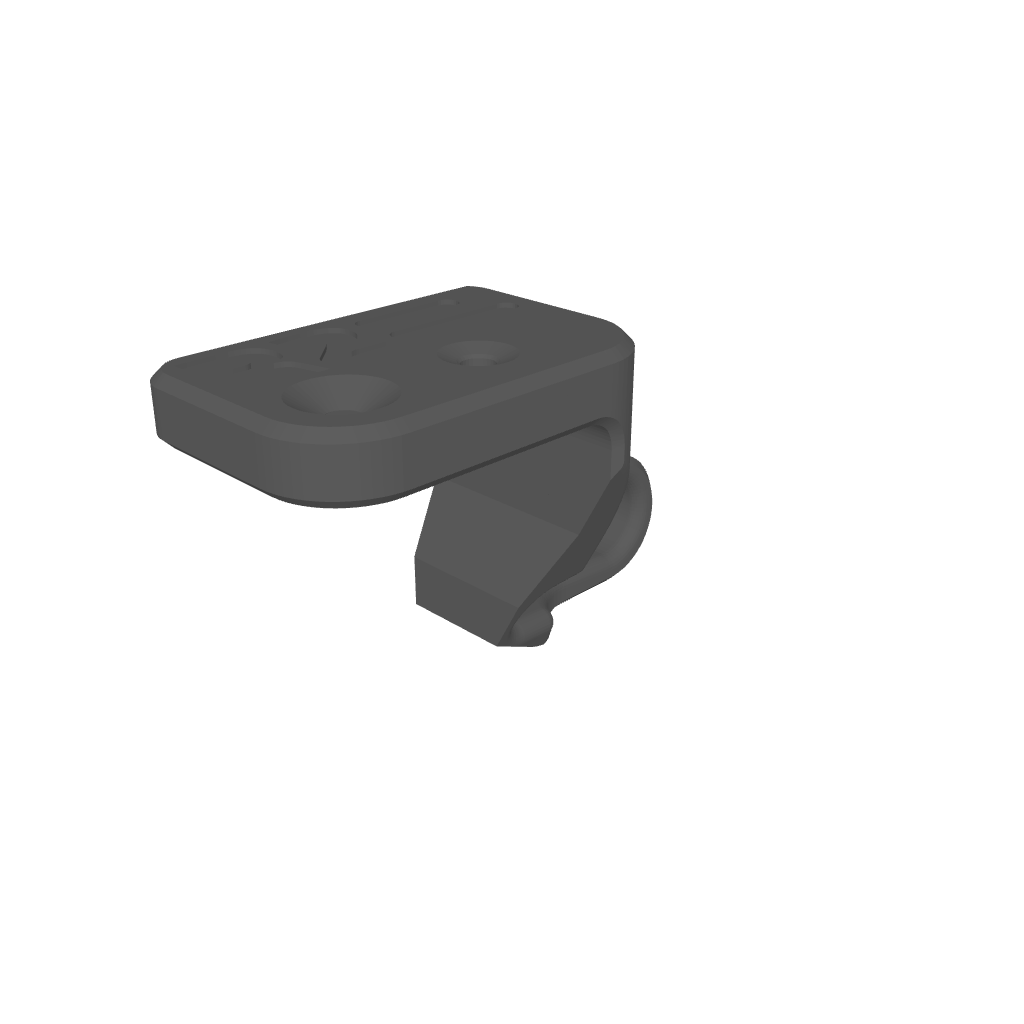

R2-v117.stl
STL
Page 1 of 3
Required Hardware
~$5–$15 total
Slot 1
ESP32 (BYOD)
Microcontroller with built-in WiFi and Bluetooth — for lightweight orobot firmware deployments.
$5–$15
Where to buy →Product links updated Jun 10, 2026 · Links not verified since last update
🛒 Add items 11–20Amazon limits 10 items per cart — click each button to add all parts.
$85–$190 estimated
Core Electronics (Both Builds)
| Item | Qty | Notes | Source |
|---|---|---|---|
| MG90S all-metal micro servos (180 Deg) | 8 (buy 10 for spares) | Primary hip/leg actuators; includes servo horns but keep extras | Amazon |
| 0.96" SSD1306 I2C OLED (128×64) | 1 | Slides into top cover slot | Amazon |
| USB-C data/power cable | 1 | Needs to carry 5V/3A for flashing and tethered mode | Amazon |
| Rocker power switch (KCD1, panel mount) | 1 | Snaps into the top cover cutout | Amazon |
| 22AWG silicone wire kit | 1 | Power/ground bus lines | Amazon |
| 30AWG silicone wire kit | 1 | Signal leads and dense harnessing | Amazon |
| Heat-shrink assortment | 1 | Insulate OLED, switch, and battery joints | Amazon |
| Small zip ties | 1 pack | Bundling wires inside the frame | Amazon |
Wiring Option A – S2 Mini / Hand-Wired Harness
| Item | Qty | Notes | Source |
|---|---|---|---|
| Lolin/WeMos ESP32-S2 Mini | 1 | Native USB-C, fits on perfboard for the hand-wired build | Amazon |
| Small protoboard (approx. 5×7 cm) | 1 | Hosts the header matrix and rails | Amazon |
| 3-pin male headers | 8 | Build the servo breakout; match spacing to MG90 plugs | Amazon |
MG90S all-metal micro servos (180°) ×2 ↗Lolin/WeMos ESP32-S2 Mini ↗0.96" SSD1306 I2C OLED (128×64) ↗KCD1 rocker switch (panel mount) ↗Small protoboard (~5×7 cm) ↗3-pin male headers ↗DC-DC buck converter (5–12 V → 5 V/3 A) ↗22 AWG silicone wire ↗30 AWG silicone wire ↗Heat-shrink assortment ↗Small zip ties ↗2× AAA cell holder ↗XT30 female pigtail ↗M2 × 5 mm self-threading screws ↗M2.5 × 5 mm machine screws ↗USB-C cable (5V/3A, for flashing & tethered mode) ↗
