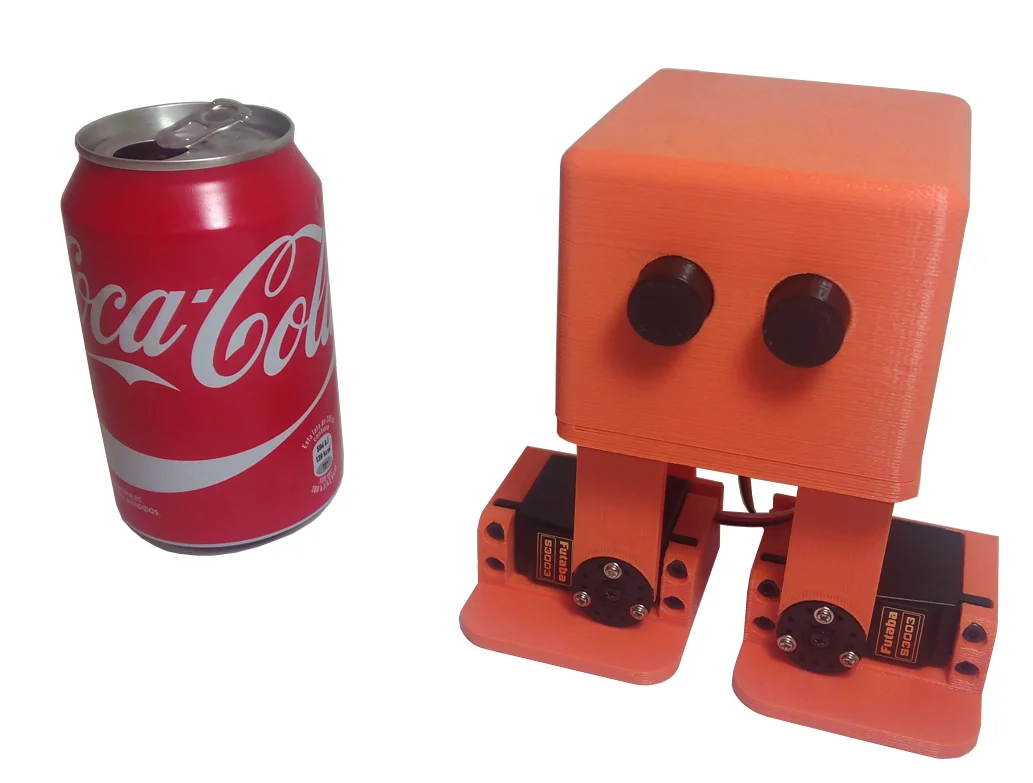

Zowi is the official open-source biped from bq (sponsored until 2016) — a compact 4-servo educational walking robot, descended from the Otto/BoB Thingiverse lineage (original concept by k120189, Thingiverse 43708). Designed entirely in FreeCAD so every part is editable and remixable. Licensed CC-BY-SA 4.0. Source: https://github.com/JavierIH/zowi
Hardware:
- 4 Futaba 3003 (or compatible) servos
- BQ ZUM BT328 or Arduino-compatible board
- 4xAAA battery holder
- ~38 M3 bolts and 22 M3 nuts
The repository ships the canonical body/chassis/leg/foot STLs plus a deep mods folder with remix variants: Forge, IronZowi, JIM, Kobuki, MicroRaider, Scopum, Zowarrior, Zowimanoid, Zowiquilator. Also includes Arduino code, schematics, and Spanish-language docs.
Resources:
- Original Thingiverse concept: http://www.thingiverse.com/thing:43708
- DIWO blog (Spanish): http://diwo.bq.com/zowi-introduccion-a-los-robots-bipedos/
License: CC-BY-SA 4.0.
🖨 Print Files (25)

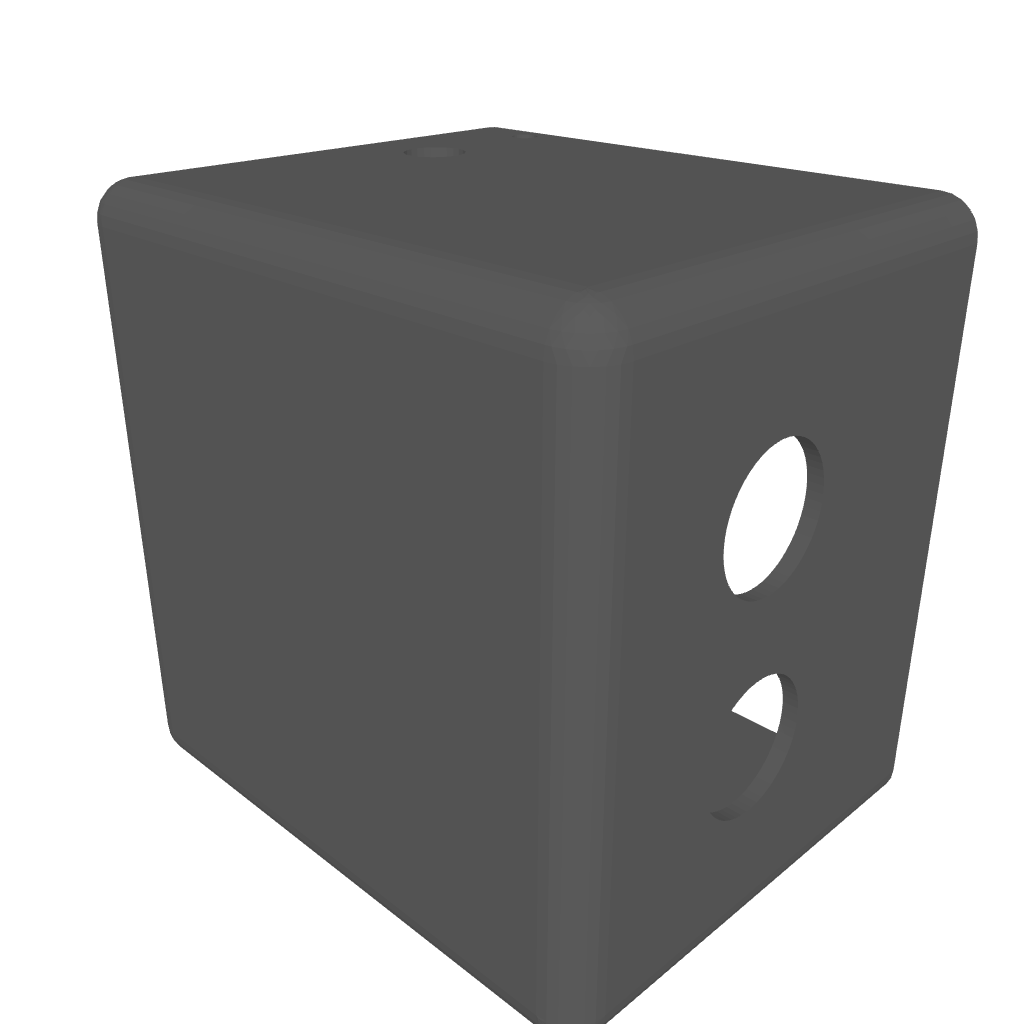

body.stl

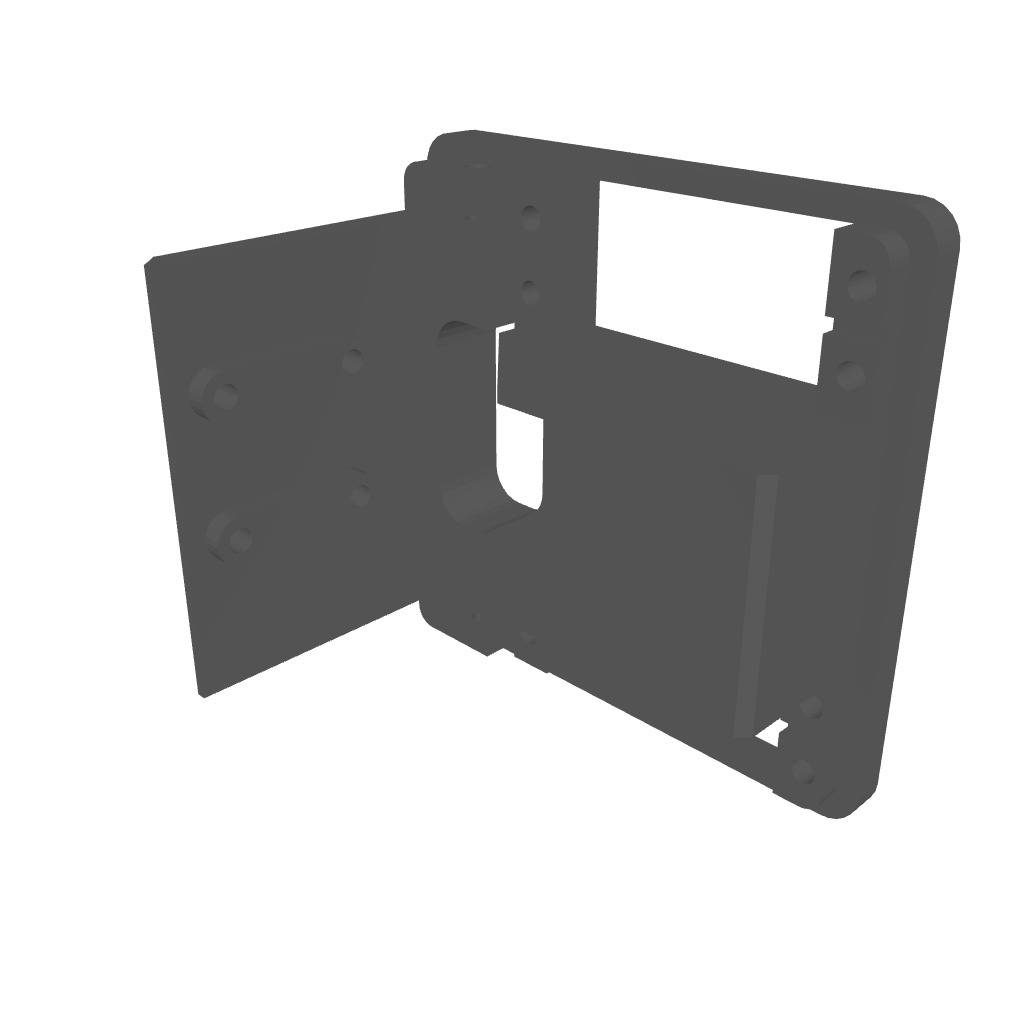

chassis.stl

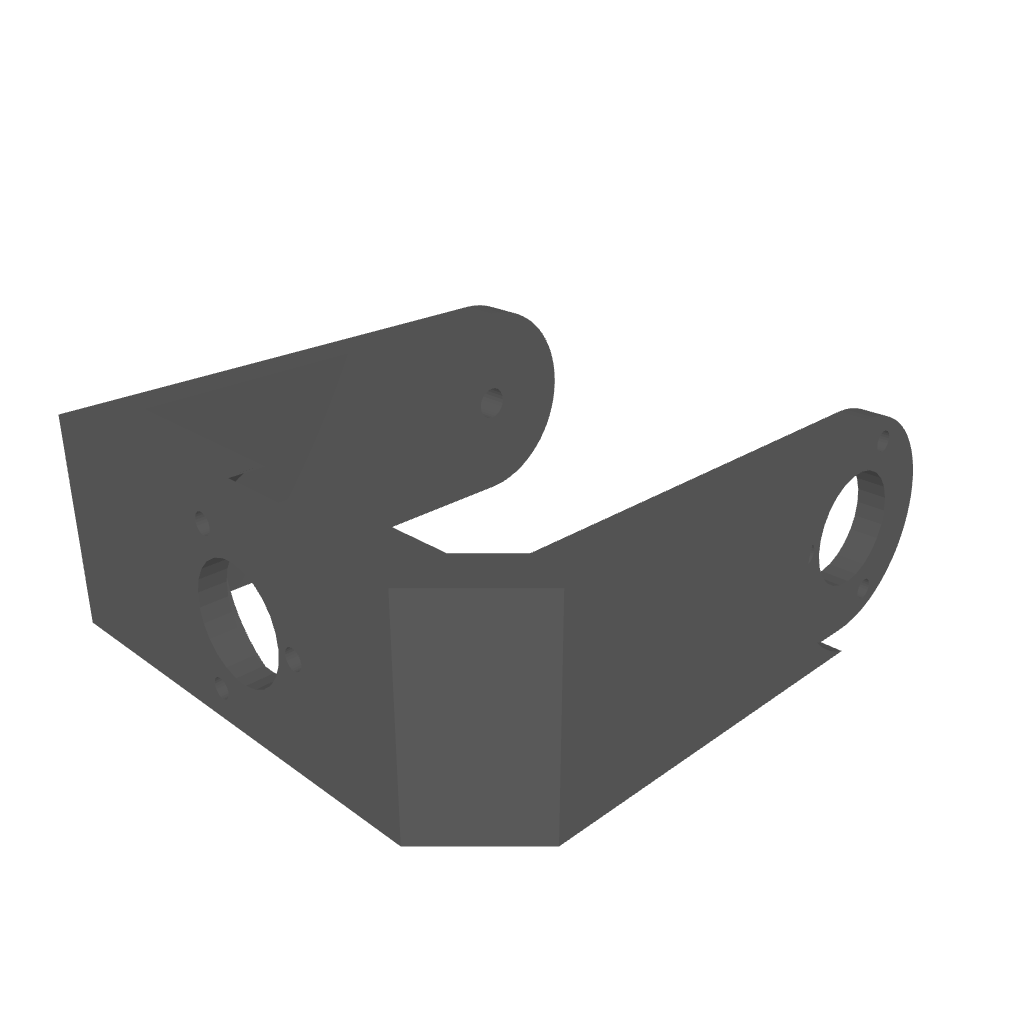

leg.stl
footL.stl

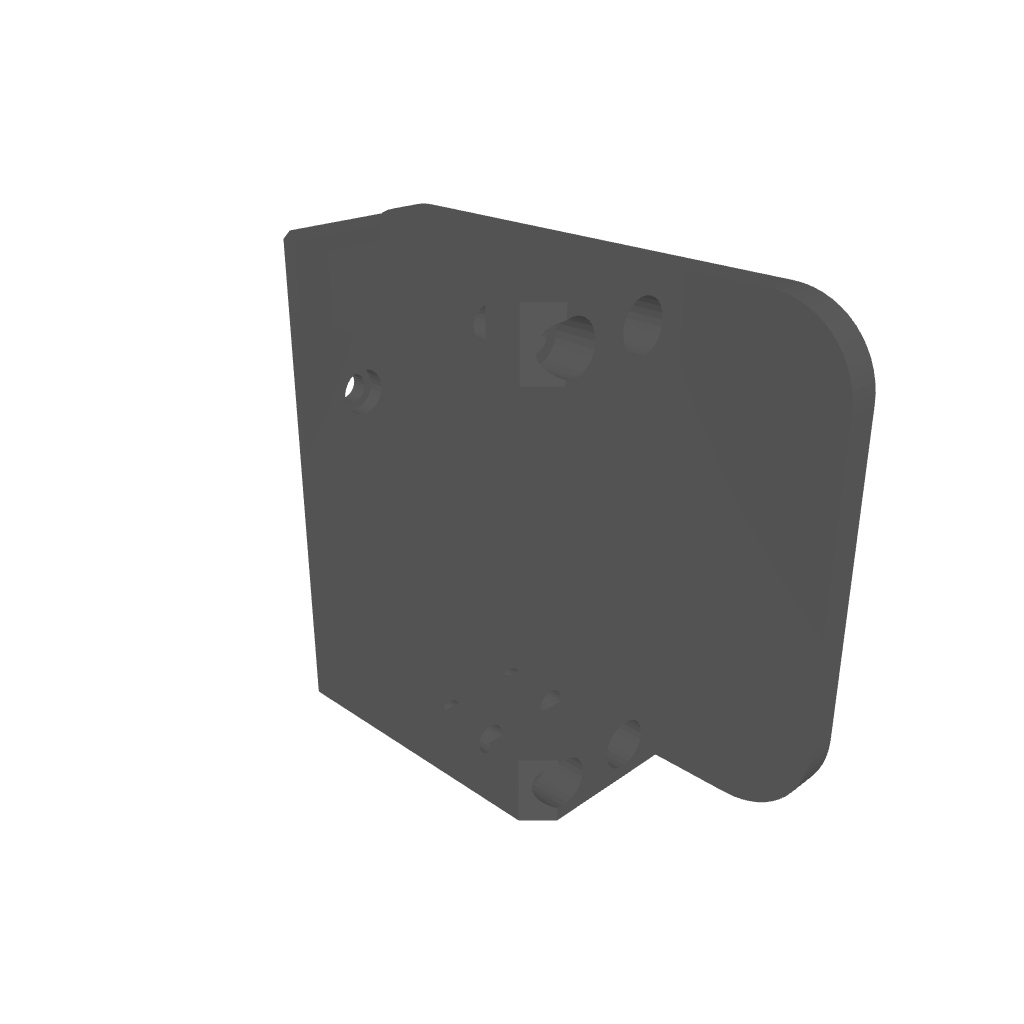

footR.stl
47e48c09-1c7e-4dc5-9c3a-275a346459c6-body.stl
Required Hardware
| Item | Qty | Unit Cost | Notes |
|---|---|---|---|
| BQ ZUM BT328 or Arduino Uno | 1 | $25.00 | Main controller (BT version has Bluetooth) |
| Futaba S3003 servo (or compatible) | 4 | $10.00 | Hip and ankle joints |
| 2xAAA battery holder | 4 | $2.00 | Power packs |
| AAA alkaline batteries | 8 | $1.00 | Power source |
| HC-SR04 ultrasonic sensor | 1 | $4.00 | (inferred) Standard on Zowi/Otto designs for obstacle detection |
| Passive piezo buzzer | 1 | $2.00 | (inferred) Sound output, present on stock Zowi |
| M3x10 bolts ISO 4762 | 6 | $0.10 | Frame fasteners |
| M3x10 bolts ISO 10642 | 2 | $0.10 | Countersunk frame fasteners |
| M3x12 bolts ISO 4762 | 8 | $0.10 | Frame fasteners |
| M3x16 bolts ISO 4762 | 8 | $0.10 | Frame fasteners |
| M3 nuts ISO 4032 | 22 | $0.05 | Frame fasteners |
| Jumper wire kit (M-F) | 1 | $7.00 | (inferred) Connect servos and sensor |
| HC-05 Bluetooth module | 1 | $8.00 | (inferred) For non-BT board variant |
