Humanoid
Modular Biped
B
BBROKER-2
@BROKER-2
Are you the creator of this robot?
Claim this project on orobot.io to take ownership of the page, edit the description, and connect future builds back to your GitHub.
✓ Confirmed fresh May 27, 2026
Sign up to InstallDetails
About this program
467 stars on GitHub.

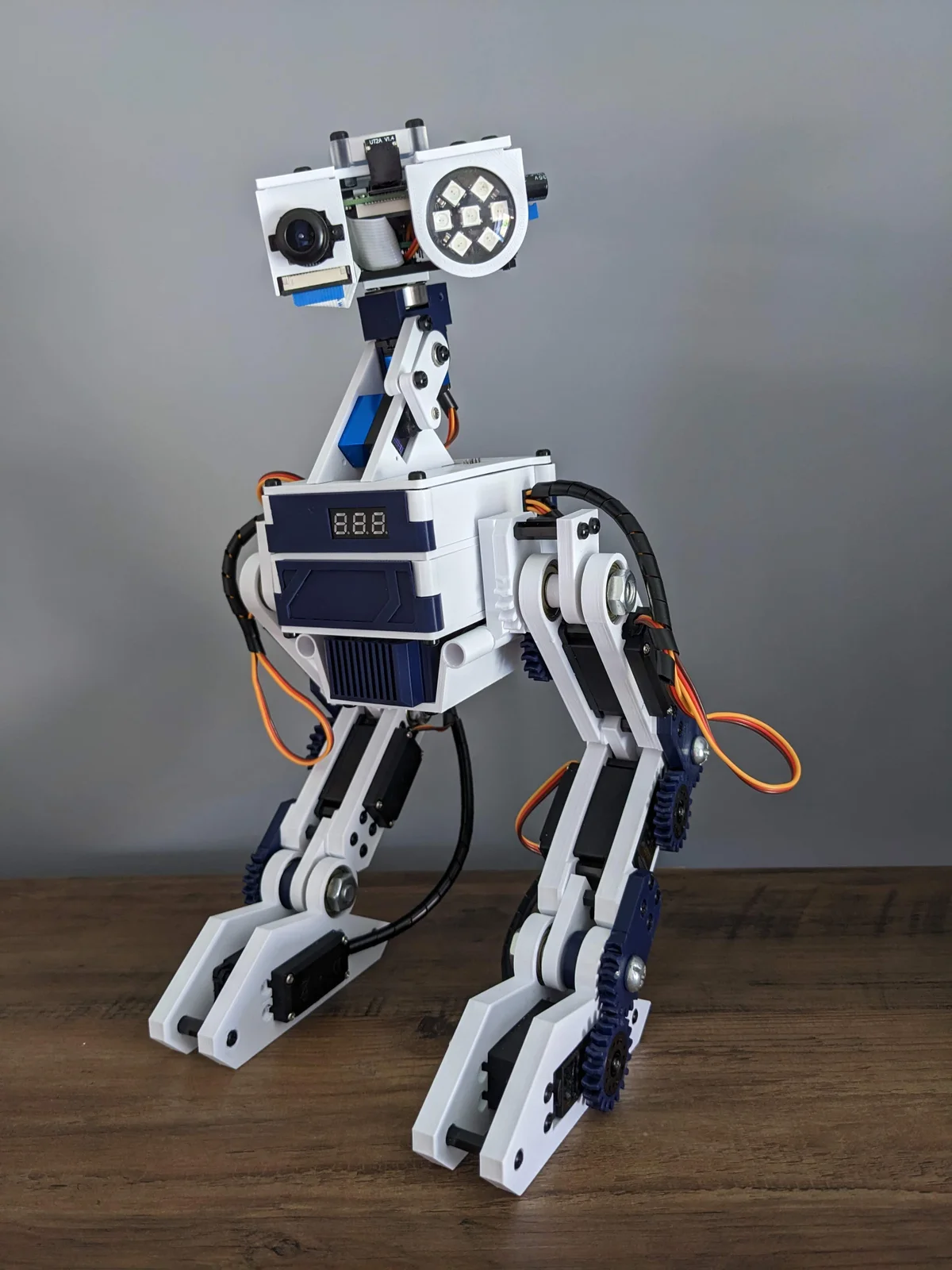

The Modular Bipedal Robot is an open-source 3D-printable companion robot from MakerForge Tech / Aaron Mason, built around a Raspberry Pi + Arduino split. The repo includes the full STL set for the v2 body, head, neck, and legs, plus a modular Python/C++ software framework with drop-in modules for vision, speech, motion detection, GPT chat, NeoPixel LEDs, RTL-SDR, and more. Source: https://github.com/makerforgetech/modular-biped
Architecture:
- Raspberry Pi (Pi 4 or Pi 5) handles vision, speech, and orchestration
- Arduino handles real-time servo control via serial
- Custom PCBs for power and IO
- IMX500 AI camera module supported
Software modules (drop-in):
- Animation, Tracking, Vision (face/object), TTS / Braillespeak
- ChatGPT / Translator (LLM-driven interaction)
- Servos, PiServo, Neopixel, Buzzer, Motion detection
- Serial bus, RTL-SDR radio, Viam integration
Build resources:
- Wiki & build guide: https://github.com/makerforgetech/modular-biped/wiki
- 3D-print files: https://github.com/makerforgetech/modular-biped/tree/main/3d_prints/v2
- Hardware list: https://github.com/makerforgetech/modular-biped/wiki/Hardware
- Software architecture: see Software Architecture.drawio.svg in repo
License: MIT.
Print Files
🖨 Print Files (33)

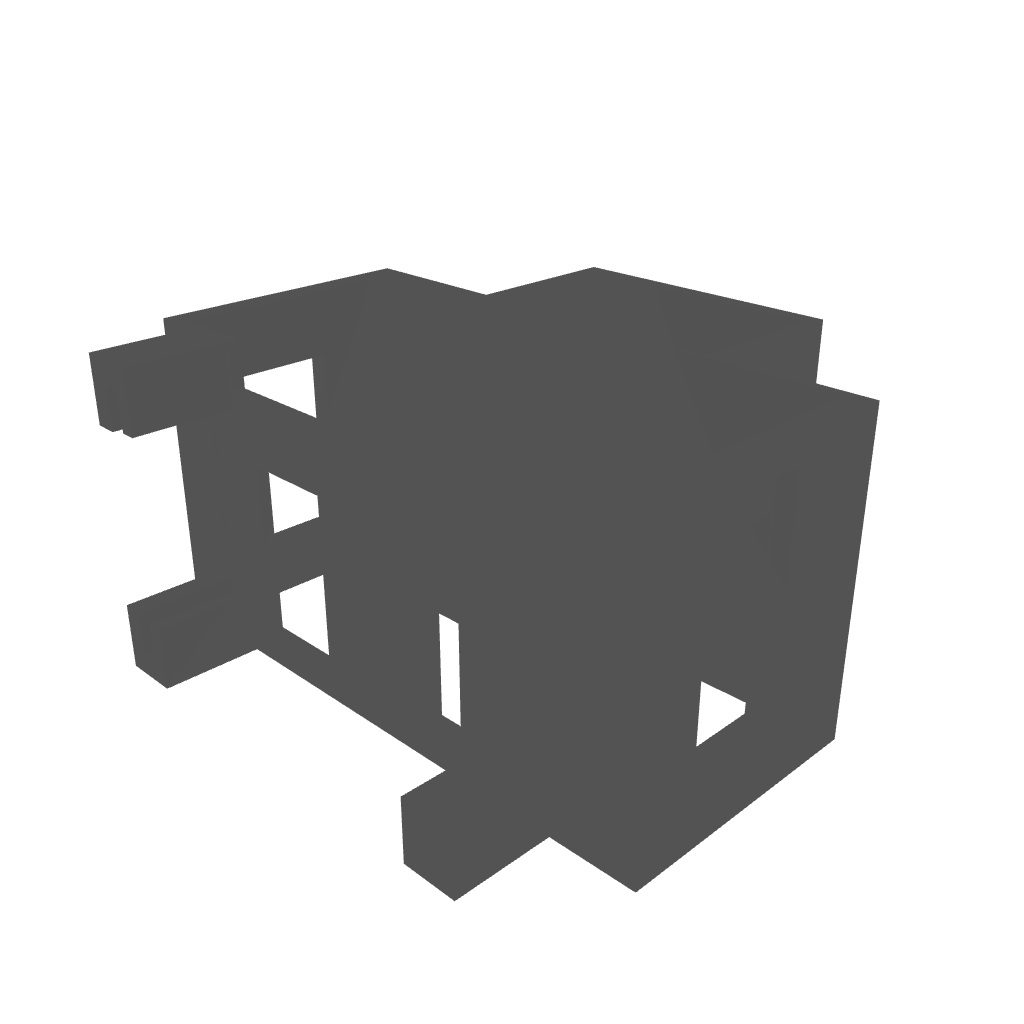

skeleton.stl
STL

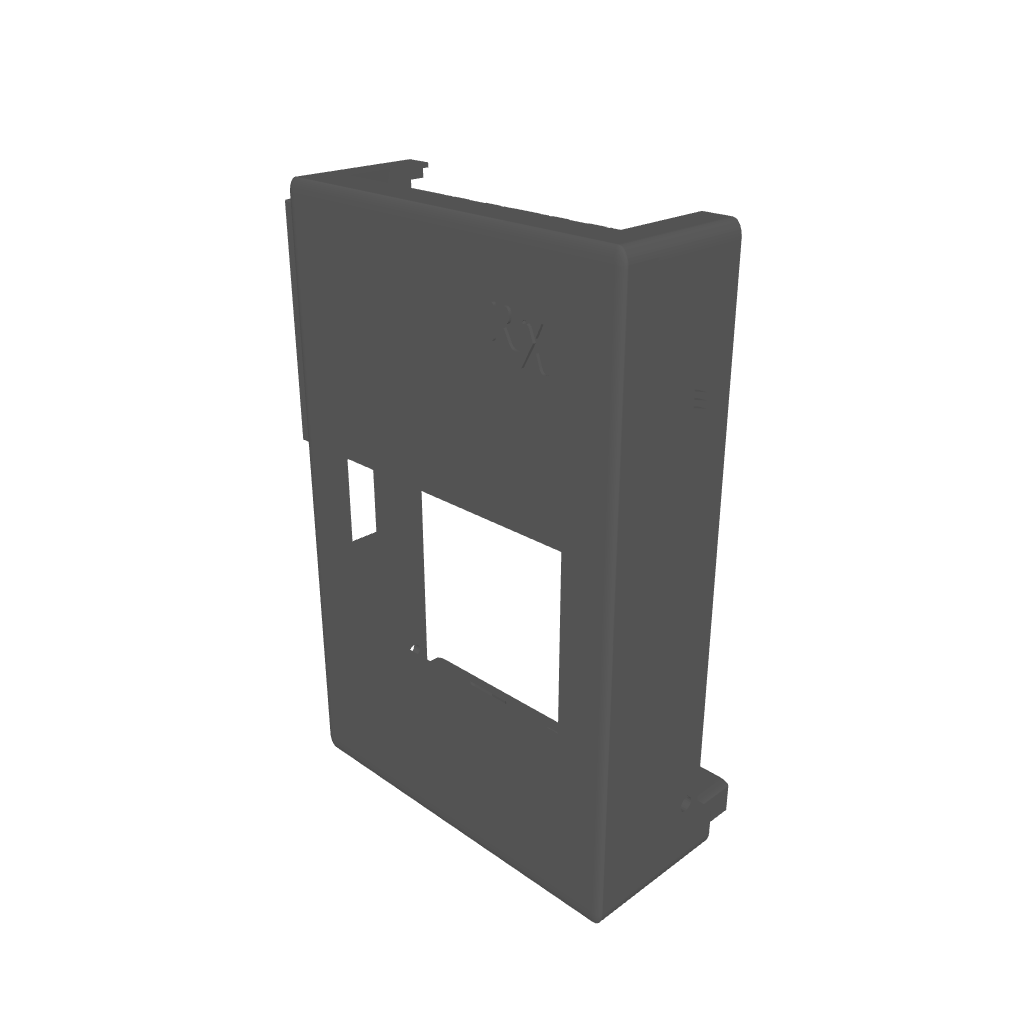

head_top.stl
STL

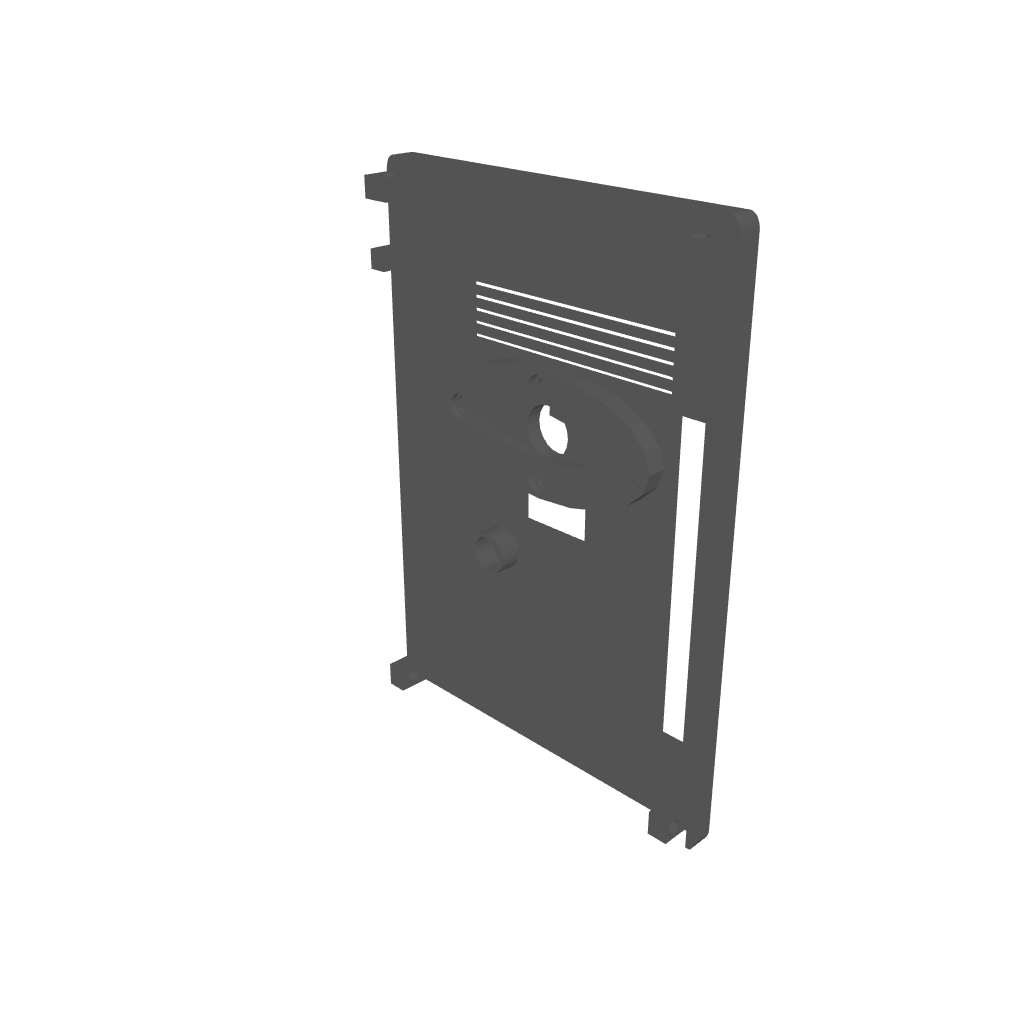

head_bottom.stl
STL

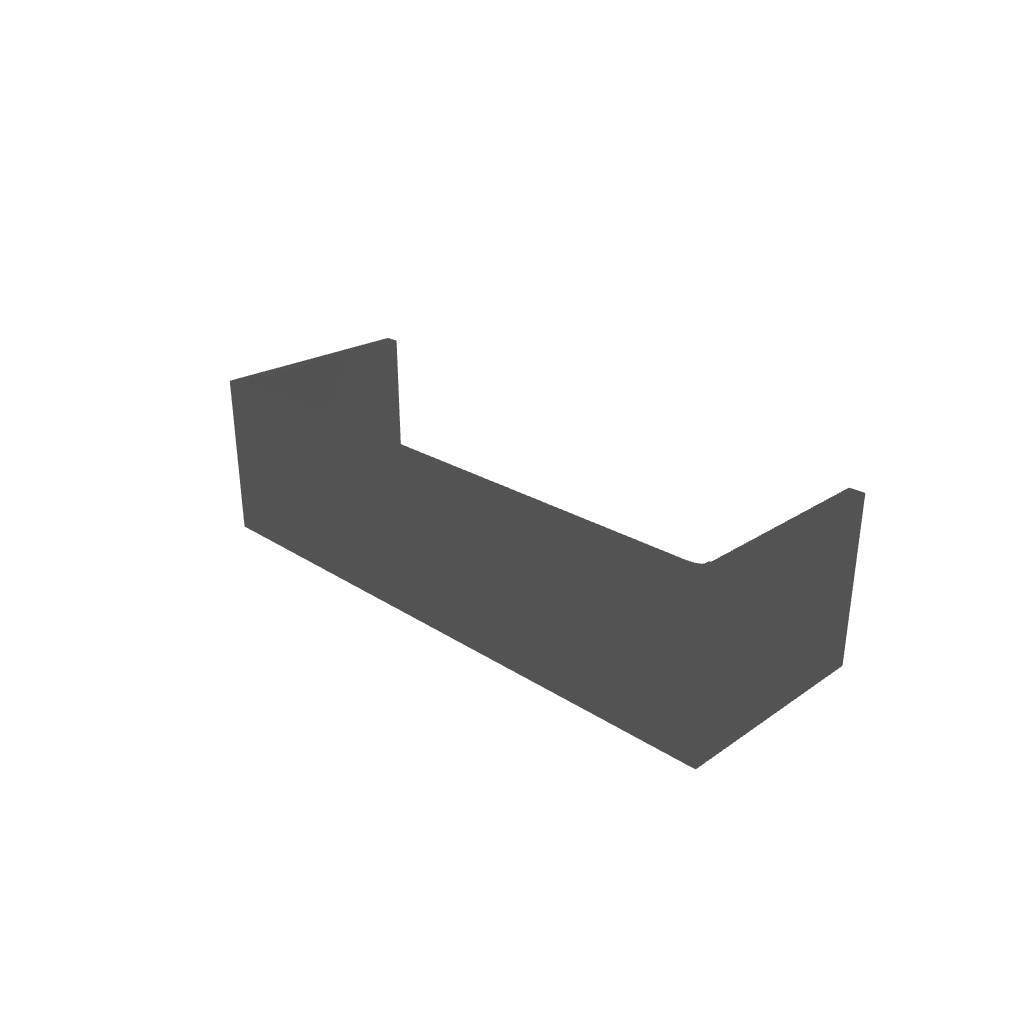

head_visor.stl
STL

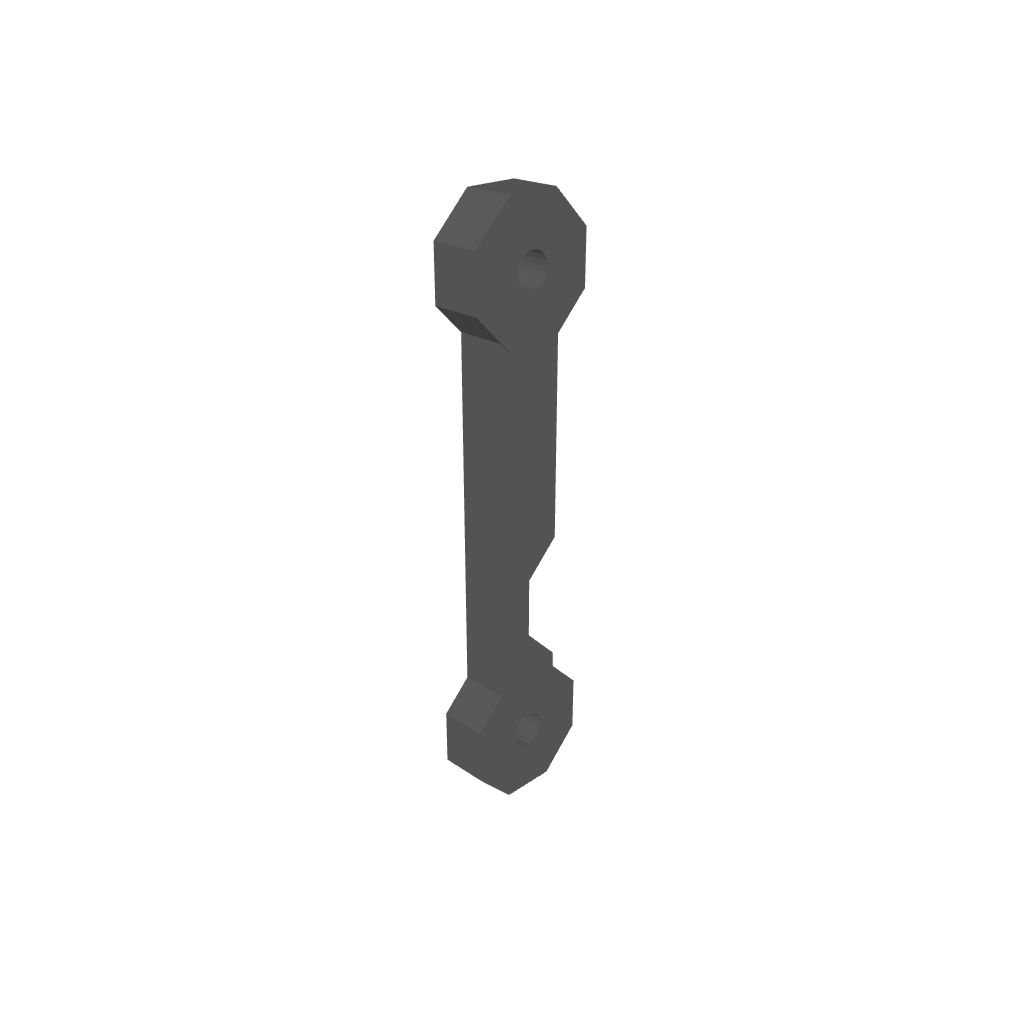

neck_tilt_upper.stl
STL

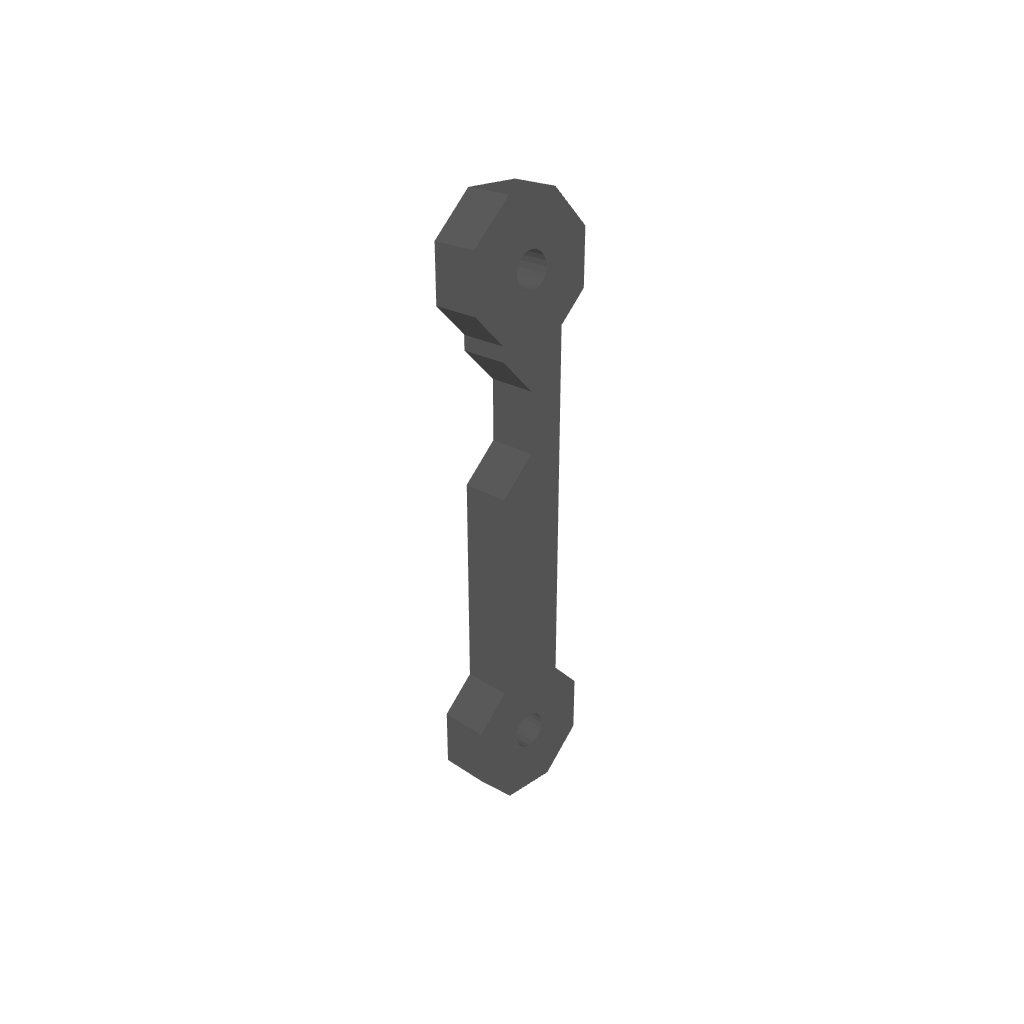

neck_tilt_lower.stl
STL
Page 1 of 6
Hardware
Required Hardware
Slot 1
Unknown
Slot 2
Unknown
Bill of Materials
Product links updated May 30, 2026 · ✓ Confirmed fresh May 27, 2026
$326–$383 estimated
| Qty | Part | Notes |
|---|---|---|
| 1 | Control Systems: Utilizes Arduino and Raspberry Pi, managed through custom PCBs. | — |
| 1 | - Motion Detection: Handles motion detection using an onboard microwave motion sensor. | — |
| 1 | - PiServo: Controls the servos connected to the Raspberry Pi. | — |
| 1 | - PiTemperature: Reads the temperature from the integrated temperature sensor on the Raspberry Pi. | — |
| 1 | - Serial Connection: Handles serial communication between the Raspberry Pi and Arduino. | — |
| 1 | - Servos: Controls the servos connected to the Arduino via the Raspberry Pi and the serial connection. | — |
| 1 | - Vision: Handles image processing and computer vision tasks using the onboard IMX500 Raspberry Pi AI camera. | — |
| 1 | YouTube Playlist: Explore the development process through our build videos: Watch on YouTube | — |
Raspberry Pi 4 Model B 4GB ↗Arduino Nano (3-pack) ↗MG996R Metal Gear Servo (10-pack) ↗MG90S Micro Servo (10-pack) ↗Sony IMX500 AI Camera (Raspberry Pi) ↗PIR Motion Sensor HC-SR501 ↗DHT22 Temperature Humidity Sensor ↗WS2812B NeoPixel LED Strip ↗Mini Speaker 8 Ohm 2W with JST ↗Active Buzzer Module 5V ↗2S 7.4V 2200mAh LiPo Battery (XT60) ↗5V 5A UBEC BEC Voltage Regulator ↗Dupont Jumper Wire Kit ↗M2 M3 Screw Assortment Kit ↗
